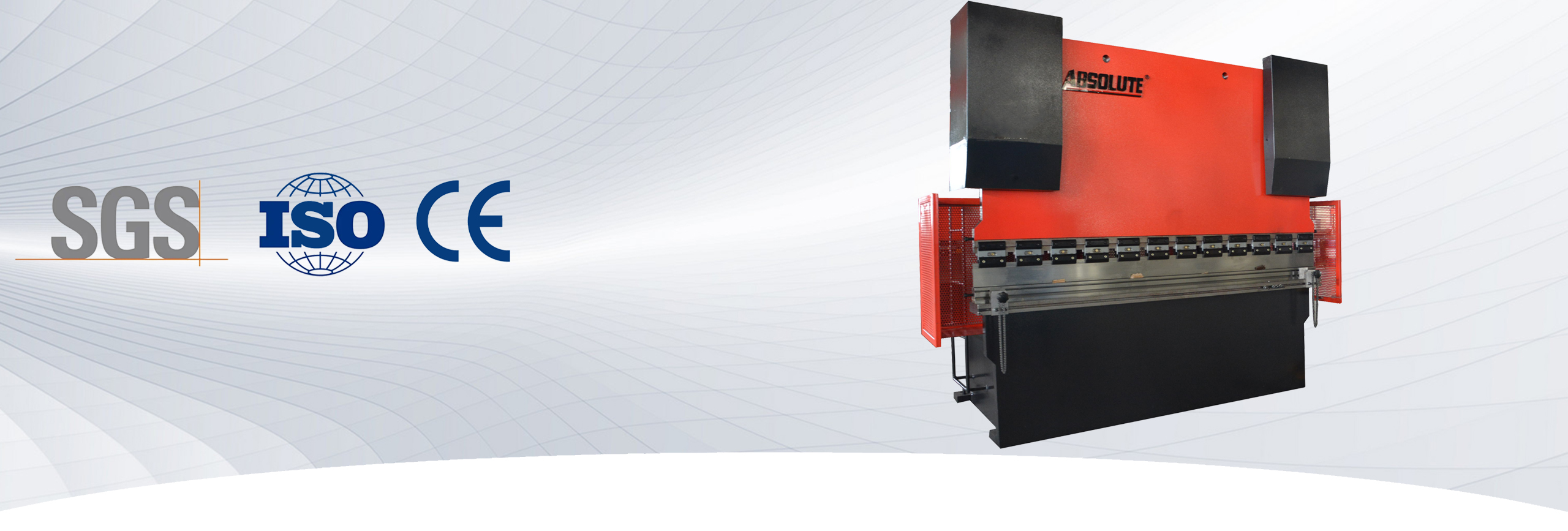

NC Press Brake-E21

Review the equipment and configuration below. Send your material, thickness, working dimensions and application to request a quotation for this machine.

Request a quotation for this machineDiscuss on WhatsApp
Standard Equipment
REQUEST INFORMATION
  • Standard Equip NC ESTUN E21 with Numberical Control
  • Absolute BGA-2 for X=500mm X,R-Axis Manual
  • Absolute Siemens Motor
  • Tool kit: One set of absolute 42CRMO molds
  • Absolute Hydraulic crowning system as optional
  • The Travel switch controls the up and down movement of the sliderRexroth Valve from Gemany
  • USA Sunny Oil Pump
  • Easy Bending Fast Clamp to change toolings
  • Invertor to positioning backguage one time
  • Full electrical components
  • CE & ISO Certification
    • Introduction to Configuration

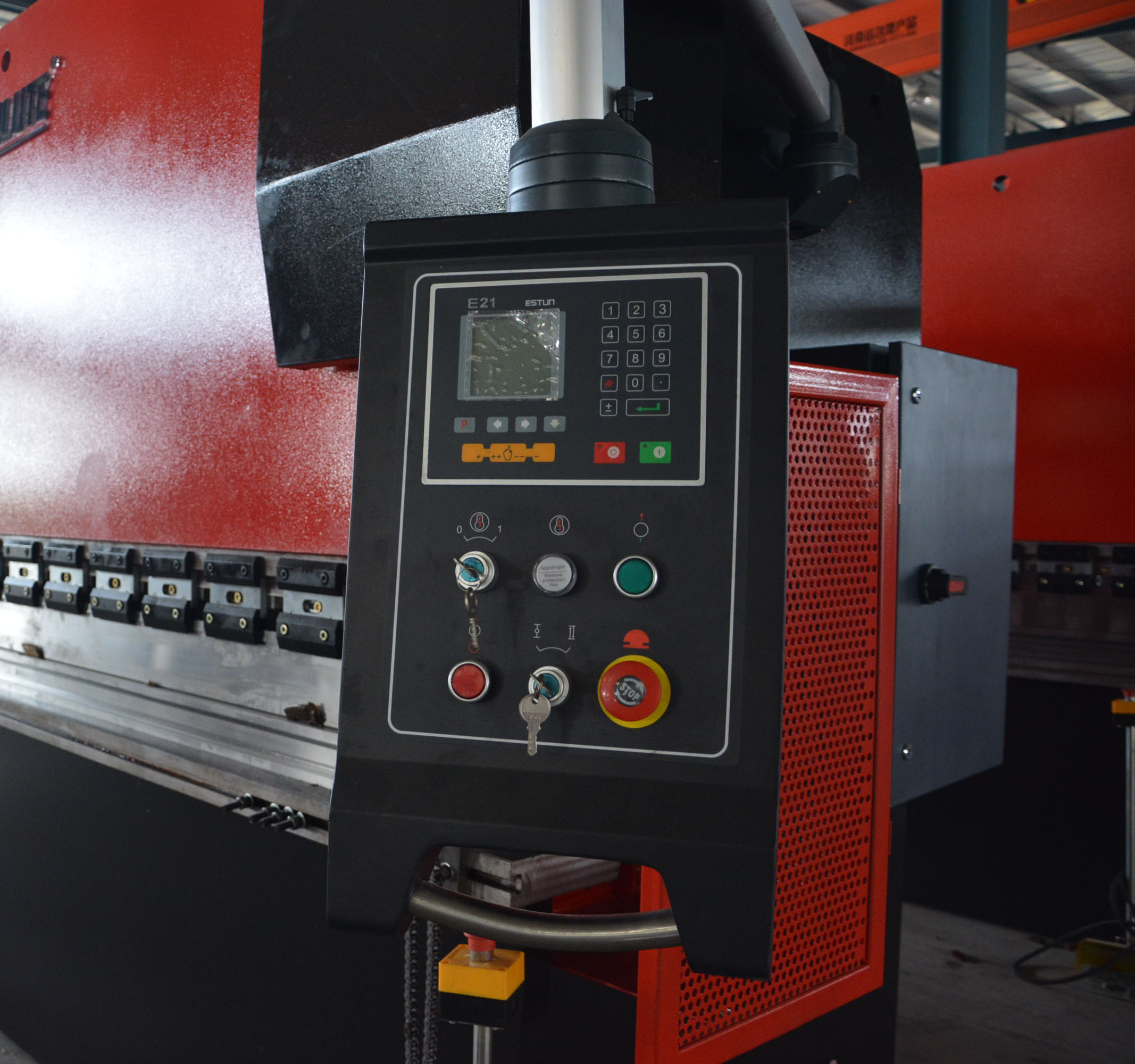

    ESTUN E21 NC System
    Backgauge control
    Control the common motor or inverter
    Intelligent positioning
    Holding pressure unloading time setting.
    Workpiece counting
    40 programs stored, 25 steps per program
    Unilateral positioning
    Concession function.
    One-key backup / restore. mm / inch
    Chinese / English

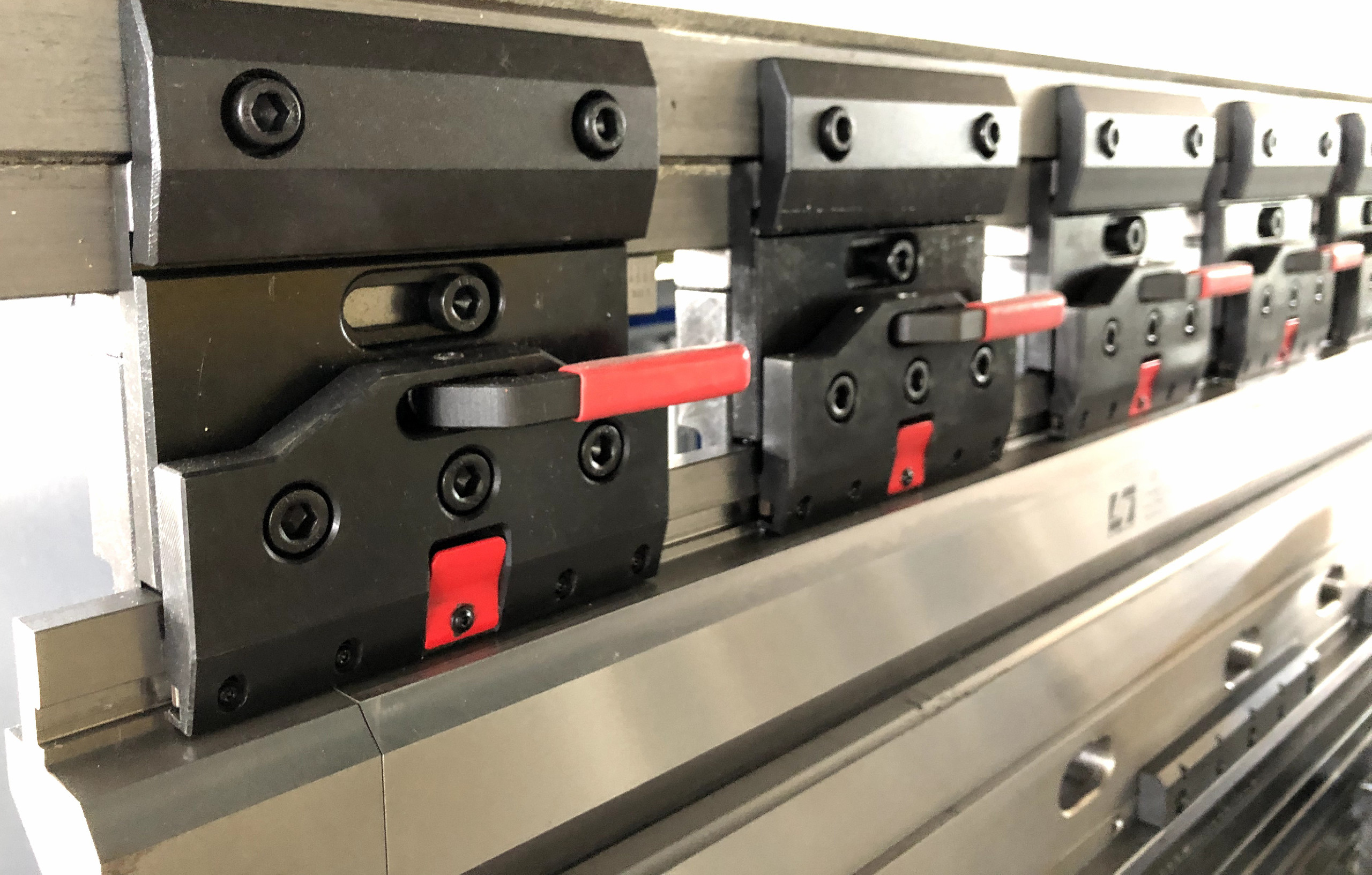

    Upgradeable mechanical rapid acceleration
    Using mechanical quick clamps, mold changing is more convenient and safer

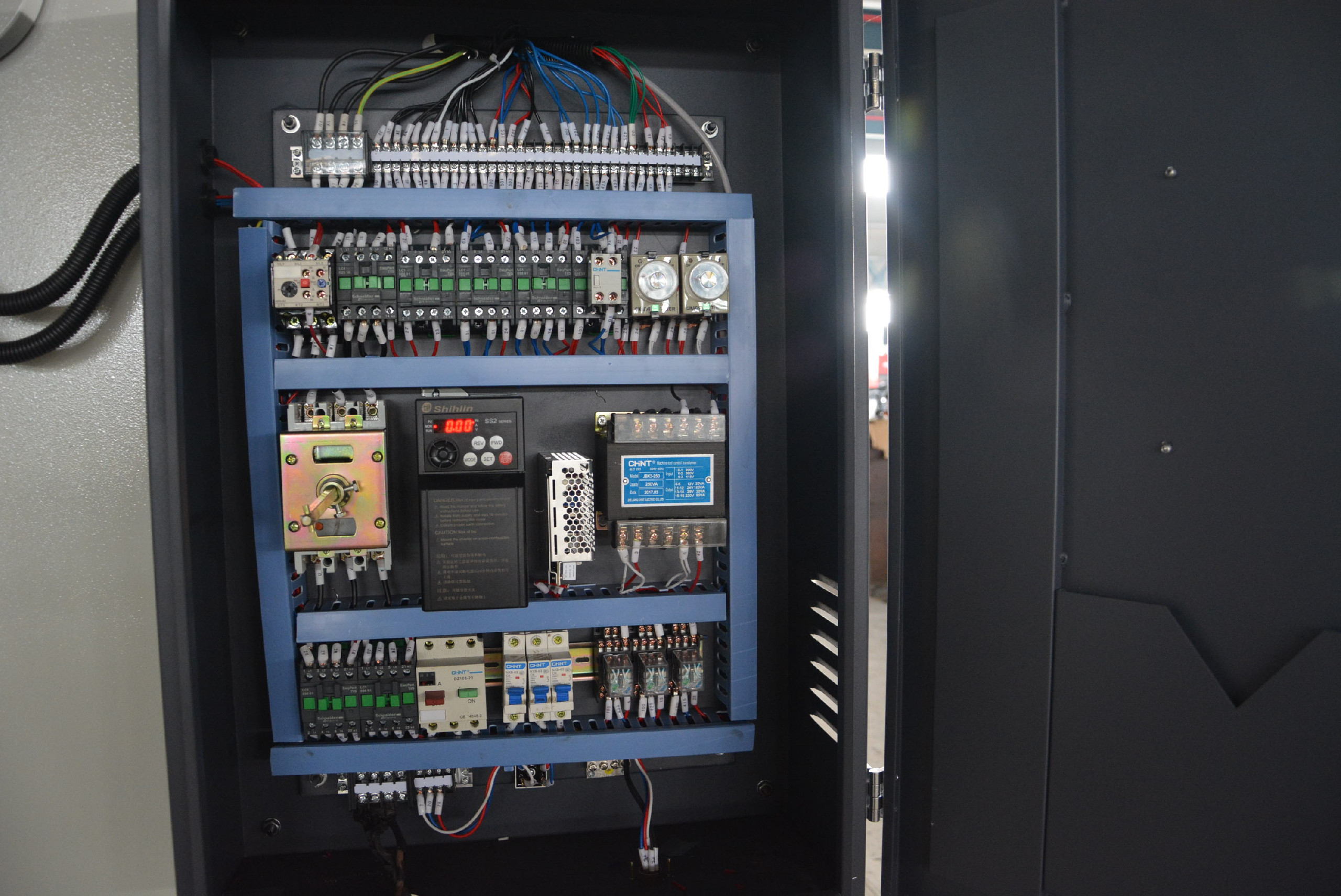

    French Schneider electrical components
    Stable French Schneider Electric improves X and Y axis positioning accuracy

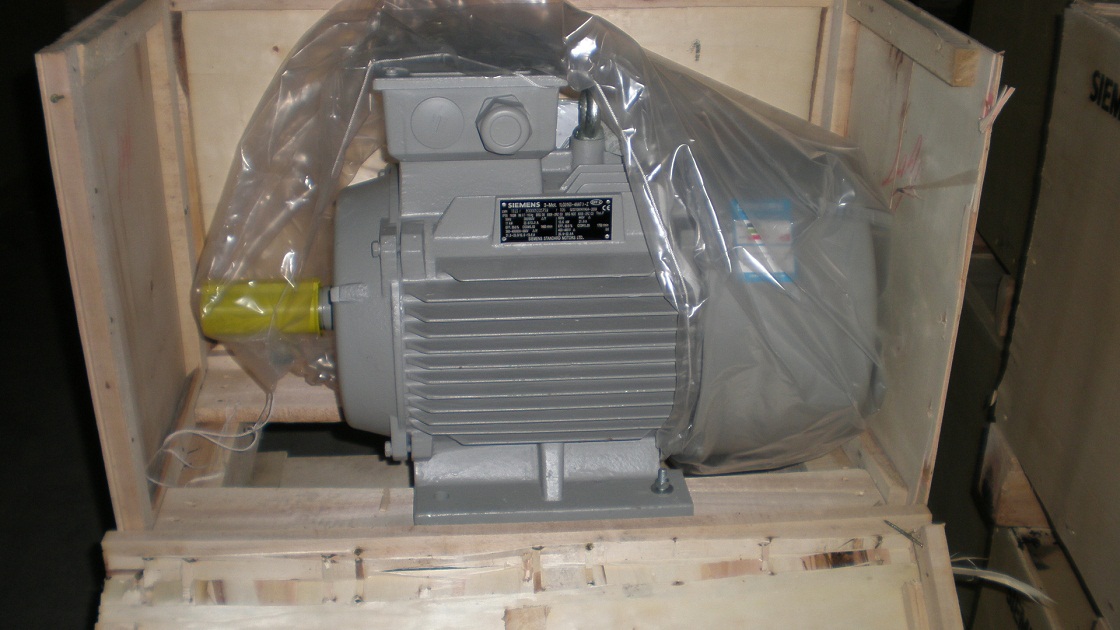

    German Siemens motor
    The use of Siemens motors ensures the machine's service life and working stability. The noise is reduced to 25 decibels and energy consumption is reduced by 30%.

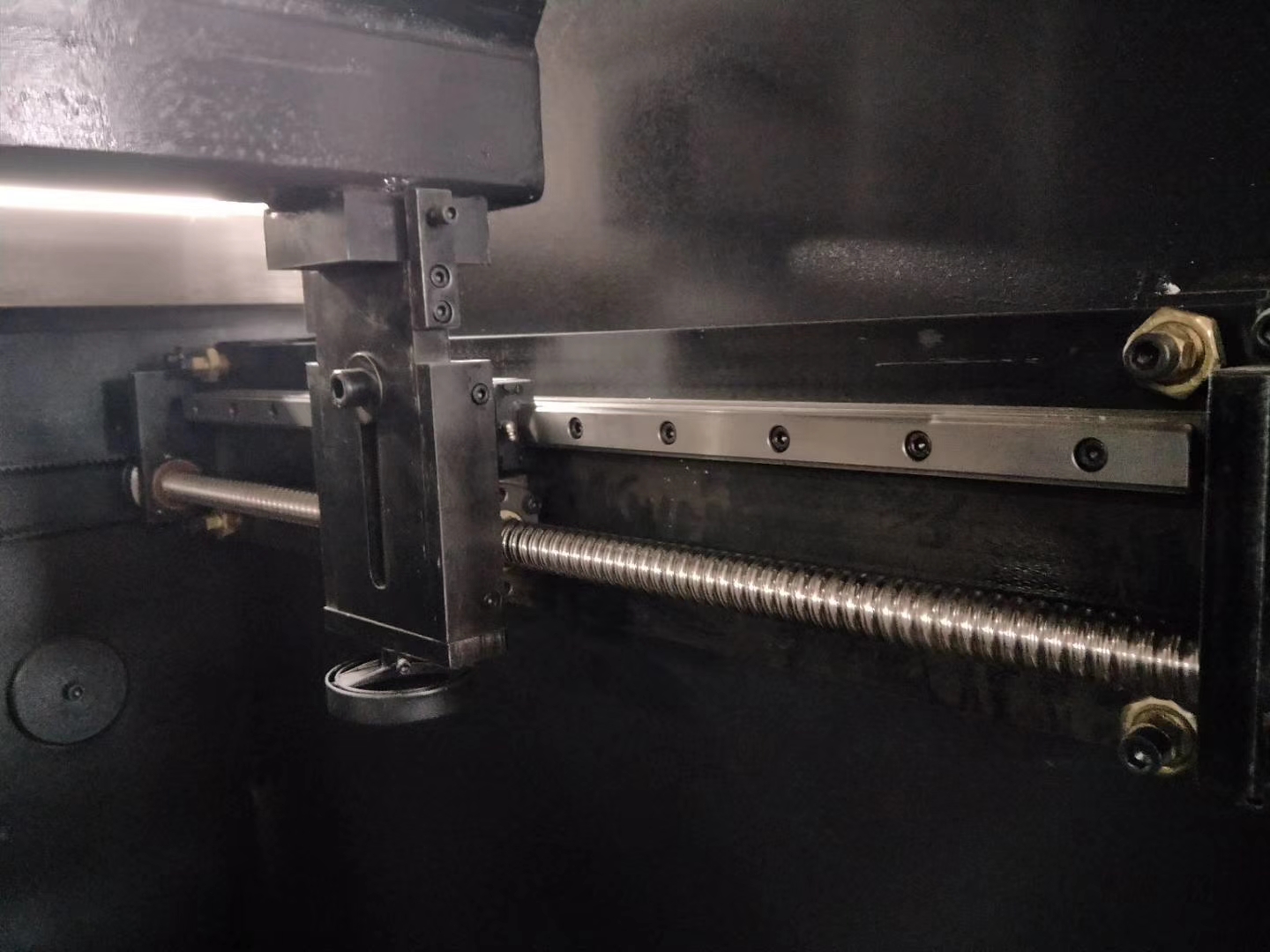

    Bending machine X-axis CNC back gauge, manual R-axis
    CNC press brakes successfully control precision and productivity, and modern sheet metal production is unthinkable without high-performance software. Efficient control algorithms optimize machine cycles, reducing the time required for setup and ensuring consistent high quality.
    Full set of 42CRMO mold
    The bending machine mold is made of 42CRmo steel, and the heat treatment temperature is as high as 42°, ensuring the service life of the mold.

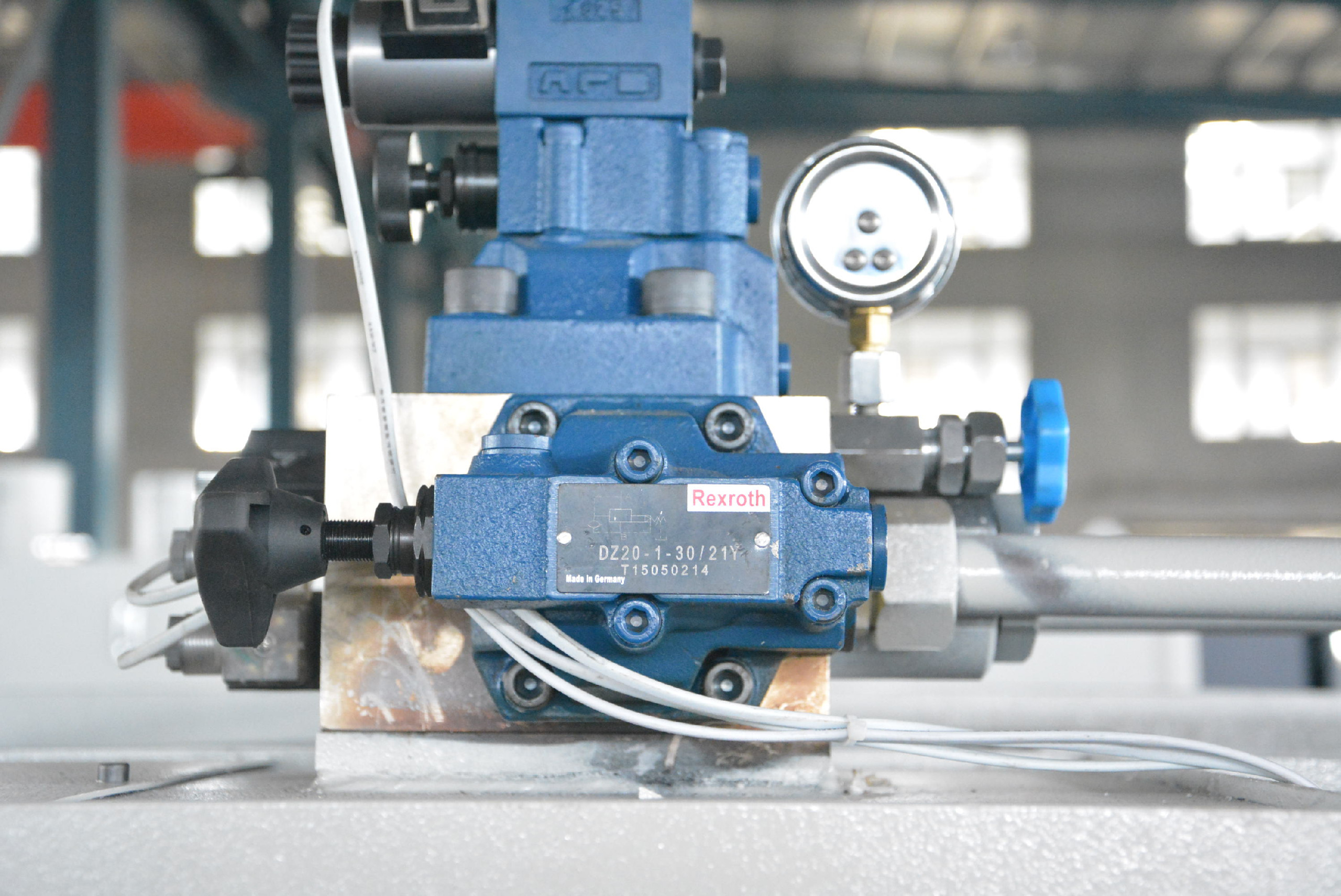

    Dr. Rexroth hydraulic valve group from Germany
    Absolute hydraulic transmission has high reliability, and the integrated hydraulic system can effectively alleviate problems caused by hydraulic oil leakage.
    Technical Parameter


    ModelForceMax. LengthVerticalDepthStrokeMax. OpeningPowerX-travelX-speedL*W*H(mm)Weight


    		ABDCE




    WC67K-
    30T/1600    		300Kn1600mm860mm320mm100mm320mm3KW500mm200mm/s1850*1650*21501.3Ton
    WC67K-
    40T/2500    		400Kn2500mm1960mm400mm100mm320mm5.5KW500mm200mm/s2850*1650*21502.45Ton
    WC67K-
    63T/2500    		630Kn2500mm1960mm400mm120mm480mm5.5KW500mm200mm/s2850*1750*22503.45Ton
    WC67K-
    63T/3200    		630Kn3200mm2600mm400mm120mm480mm5.5KW500mm200mm/s3550*1750*23504.2Ton
    WC67K-
    80T/2500    		800Kn2500mm1960mm400mm120mm480mm7.5KW500mm200mm/s2850*1750*23504.5Ton
    WC67K-
    80T/3200    		800Kn3200mm2600mm400mm120mm480mm7.5KW500mm200mm/s3850*1850*25504.7Ton
    WC67K-
    100T/2500    		1000Kn2500mm1960mm400mm150mm480mm7.5KW500mm200mm/s2850*1750*23805Ton
    WC67K-
    100T/3200    		1000Kn3200mm2600mm400mm150mm480mm7.5KW500mm200mm/s3850*1850*26005.9Ton
    WC67K-
    100T/4000    		1000Kn4000mm3200mm400mm150mm480mm7.5KW500mm200mm/s4610*1850*27006.7Ton
    WC67K-
    125T/3200    		1250Kn3200mm2600mm400mm150mm480mm7.5KW500mm200mm/s3850*1850*26006.5Ton
    WC67K-
    125T/4000    		1250Kn4000mm3200mm400mm150mm480mm7.5KW500mm200mm/s4610*1850*27007Ton
    WC67K-
    160T/3200    		1600Kn3200mm2600mm400mm200mm480mm11KW500mm200mm/s3900*1900*26008.5Ton
    WC67K-
    160T/4000    		1600Kn4000mm3200mm400mm200mm480mm11KW500mm200mm/s4650*1900*27009.8Ton
    WC67K-
    200T/3200    		2000Kn3200mm2600mm400mm200mm480mm15KW500mm200mm/s3900*1900*270010.5Ton
    WC67K-
    200T/4000    		2000Kn4000mm3200mm400mm200mm480mm15KW500mm200mm/s4700*1900*270012.5Ton
    WC67K-
    250T/3200    		2500Kn3200mm2600mm400mm200mm480mm15KW500mm200mm/s3900*2100*280013.3Ton
    WC67K-
    250T/4000    		2500Kn4000mm3200mm400mm200mm480mm15KW500mm200mm/s4650*2100*285015Ton
    WC67K-
    300T/3200    		3000Kn3200mm2600mm400mm200mm480mm22KW500mm200mm/s3930*2110*320015Ton
    WC67K-
    300T/4000    		3000Kn4000mm3200mm400mm200mm480mm22KW500mm200mm/s4830*2110*320016.5Ton
    WC67K-
    400T/4000    		4000Kn4000mm3200mm400mm320mm600mm30KW500mm200mm/s4850*2450*350023Ton
    WC67K-
    500T/6000    		5000Kn6000mm4900mm500mm320mm600mm37KW800mm200mm/s6500*2810*450034.5Ton
    WC67K-
    600T/6000    		6000Kn6000mm4900mm500mm320mm600mm45KW800mm200mm/s6500*2910*510047Ton
    WC67K-
    800T/6000    		8000Kn6000mm4720mm700mm400mm600mm55KW800mm200mm/s6500*2950*530072Ton


    Q: How to get an accurate quotation from us?

    A: Please provide us the details of material, max thickness and max width.



    Q: Can you do OEM service?

    A: Yes, we can. Your design is accepted, your own logo can be used on the machine.



    Q: What's the shipping cost from china to your country?

    A: We can send machine to your port or door address by sea or airplane.

    Please kindly tell us your nearest port or address with postcode.

    We have reliable shipping agent to insure the safe convenient and time delivery.



    Q: Do you accept LC payment?

    A: Yes, normally our payment is 30%+70% T/T, LC payment is also acceptable.



    Q: How to operate this machine?

    A: Video line of our factory or we send you the video directly.



    Q: What about commissioning service?

    A: We can offer commissioning service, the buyer need to afford plane tickets.



    Q: Do you offer teaching & training?

    A: Training at supplier's plant.


                                          Optional CNC system

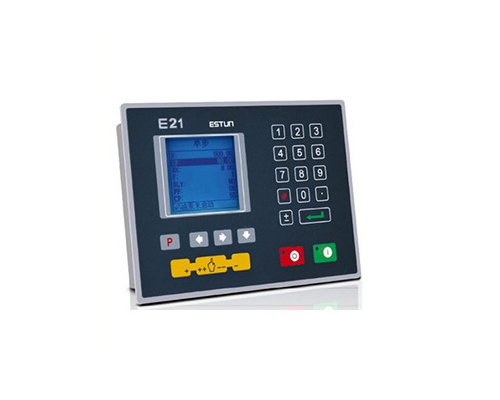

    Estun E21

    ★X, Y-axis intelligent positioning

    ★Built-in pressure holding time and unloading delay setting function

    ★With one-click parameter backup and recovery function

    ★Support multi-step programming

    ★Control function improvement, supporting X, Y, R axis servo axis control

    ★Hydraulic compensation/mechanical compensation modes are optional

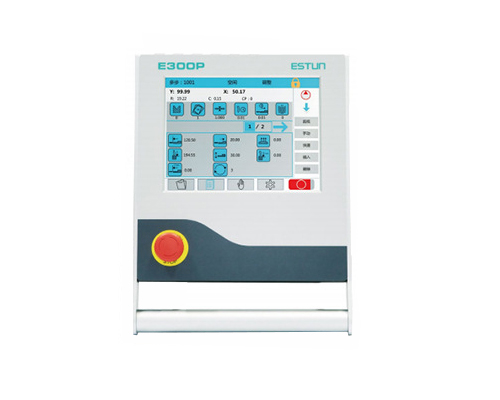

    Estun E300P

    ★Built-in parameter backup and one-click recovery function

    ★Resistive touch screen, stable and reliable, super long life

    ★Hydraulic valve group logic can be freely configured, and I/O function ports can be freely configured.

    ★Accurate angle programming calculation function, built-in mold library and material table

    ★Safe area protection, collision detection, R-axis collision avoidance and positioning functions.

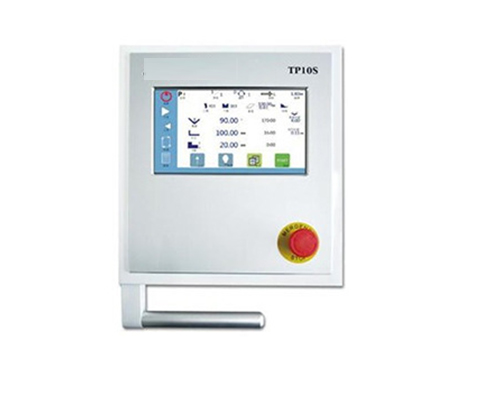

    TP10S

    ★Has a 10" true color touch screen with intuitive and clear TFT display

    ★Menu programming interface

    ★Angle editing, post-positioning intelligent control function

    ★Automatic calculation function for complex bending steps

    ★Program automatic storage function

    ★Contains 220 sets of programs, each program contains 24 bending
