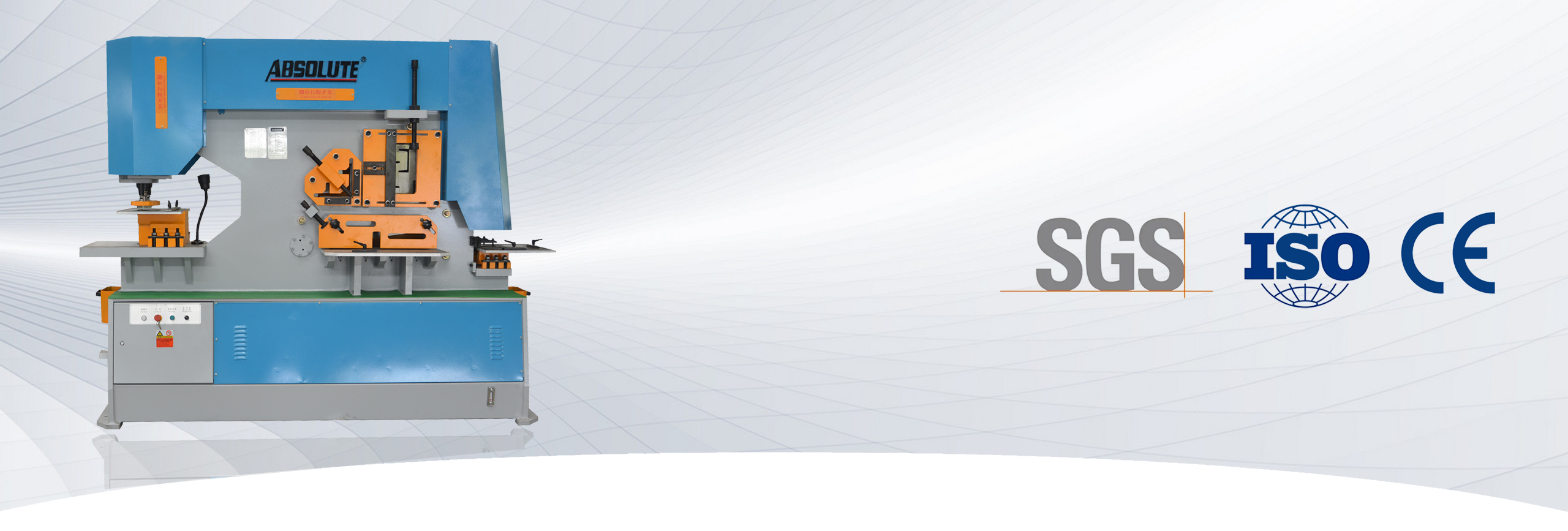

Machine front

Cutting part

behind the machine

Hoisting

Standard Equipment

REQUEST INFORMATION

Electrics : Germany Schneider Electric

Main Motor:Motor-Germany

Frequency Converter:JRACDRIVE

Foot Switch:KACON- South Korea

Hydraulic System:Bosch Rexroth-Germany

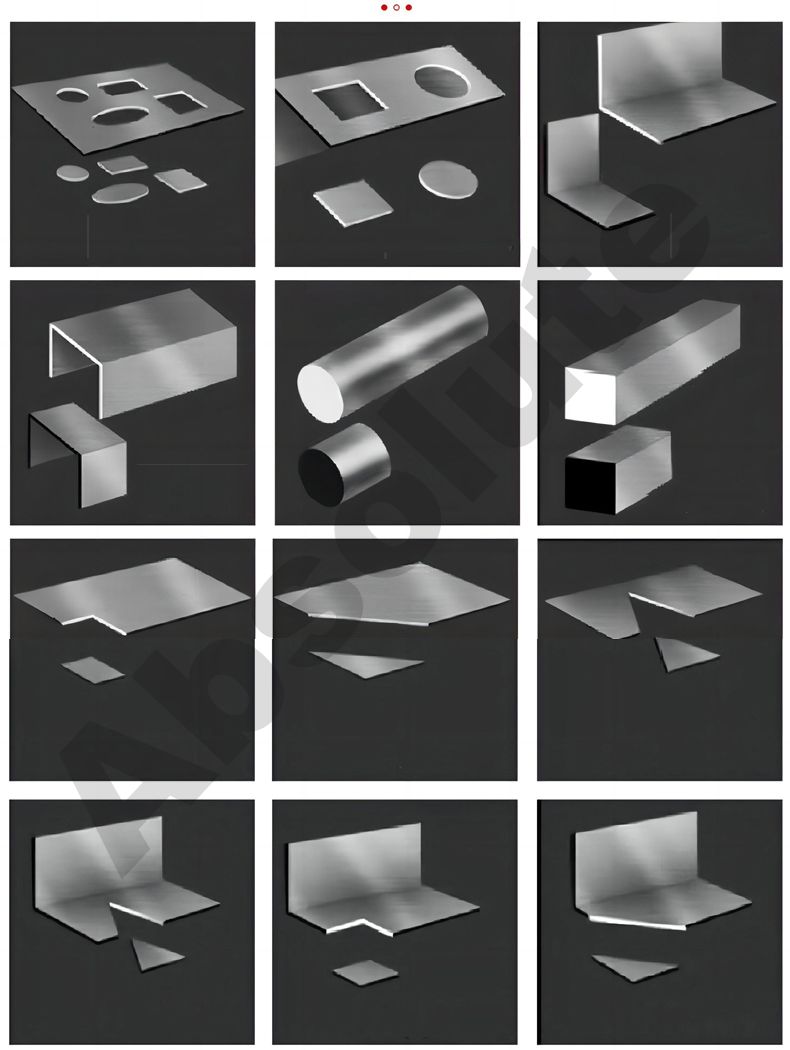

Hole punching

Sheet bending

Sheet notching

Flat sheet cutting

Angle steel cutting

Channel steel cutting

Louver hole punching

Square and round steel cutting

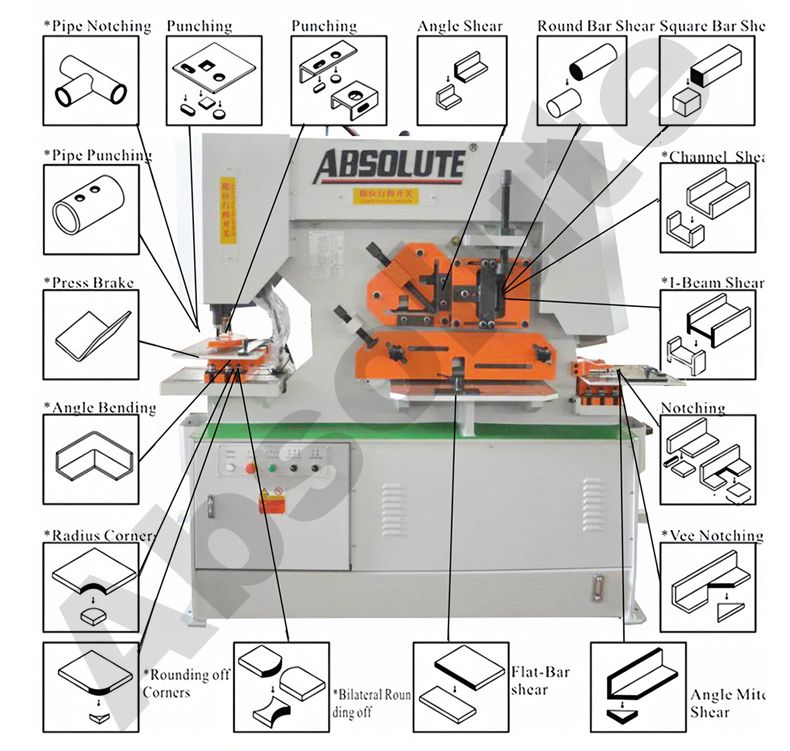

Function diagram

Preferences

Model					Q35Y-16		Q35Y-20	O35Y-25	Q35Y-30		Q35Y-40		Q35Y-50
Pressure(Ton)					65		90	120	160		200		250
Shear the maximum thickness(mm）					16		20	25	30		35		40
Plate strength(Nmm')					≤450		≤450	≤450	≤450		≤450		≤450
Shear size of one stroke(mm)					16x230 8x400		20x330 10x480	25x330 16x600	30x330 20x600		35x400 25×700		40x400 30x750
Ram stroke(mm）					80		80	80	80		80		80
Number of strokes(80mm stroke)(qpm)					12		12	10	10		10		10
TNumber of strokes(20mm stroke)(cpm					25		25	25	25		20		20
Throat dupth(mm)					300		355	400	600		600		600
Punching thickness(mm)					16		20	25	26		35		40
Max Punching diameter(mm)					25		30	35	38		40		40
Power of main motor(kw)					5.5		7.5	7.5	11		15		18
Overal dmensions LxWxH(mm)					1640x730×1770		860×800×190	2356×960×2090	2680×1081×230		2970×1240x260		3000x140x250
Weght of machine(kg)					1600		2300	4300	6400		9200		12800
Profile	Round Bar	Square Bar	Equal Angle			T-Bar				l-Bar		Channel
			90°Shearing	45°Shearing		90°Shearing		45°Shearing
Fracture surface
Q35Y-16	45	40×40	125×125×12	50×50×5		125×125x12		50×50×8		126×74×5		126×53×5.5
Q35Y-20	50	50×50	140×140×12	50×50×5		140×140×12		50×50×10		160×86×6		160×60×6.5
Q35Y-25	60	50×50	160×160×14	60×60×6		160×160×14		60×60×10		200×102×9		210×75×9
Q35Y-30	65	55x55	180×180×16	60×60×6		180×180×16		60×60×10		280×124×10.5		280×86×11.5
Q35Y-40	70	60×60	200×200×18	100×100×10		160×160×14		80×80×10		300×126×11		300×89×12
Q35Y-50	80	65×65	200×200×2	120×120×10		180×180×16		80×80×10		320×130×10		320×92×12

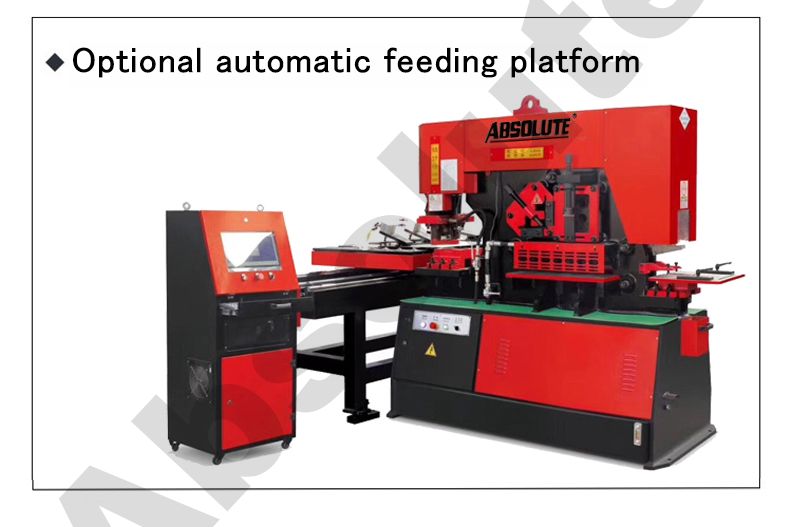

Optional configurations

Q35Y Multifunctional Hydraulic Ironworker

What to include in your inquiry
