CNC V-Grooving Machine | Vertical Slotting Machine

The vertical slotting machine adopts the precision ball screw as the power transmission component and has the characteristics of high processing precision, which is especially important for high performance products.

The machine has three-axis, X-axis (longitudinal moving of the tool tip), Y-axis (up and down), Z-axis (vertical moving of the tool tip) servo motor control, realizes full-automatic operation after parameter input, and comprehensively improves the planer Precision.

The pressing system uses the hydraulic system as the power, the pressure is large, and the fastening force is reliable. At the same time, low noise and low energy consumption.

The rear moving part is driven by double ball screw, and the positioning accuracy of the board surface is high.

The tool holder slide is made of cast iron material, which is wear-resistant and repairable, and the service life is guaranteed for more than ten years.

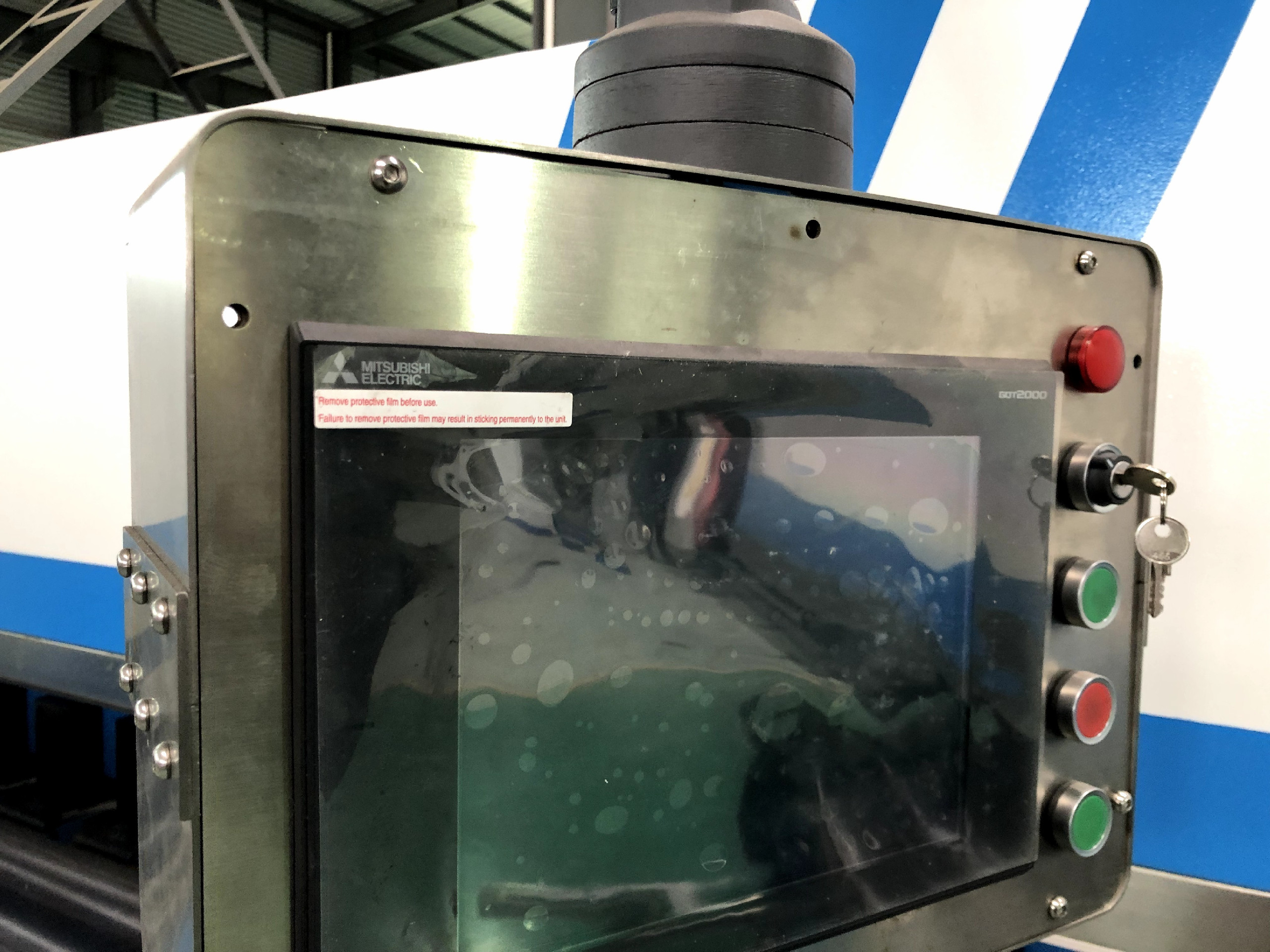

Control System

Adopting CNC numerical control, it is easy for operators to operate with fool-like operation. The accuracy is also high

Machine tools and guide rails

High-strength steel plate welding process is adopted, and the whole machine quenching process ensures that the fuselage will not be deformed permanently.

The whole machine adopts silver linear guide rails to make the equipment more precise and stable.

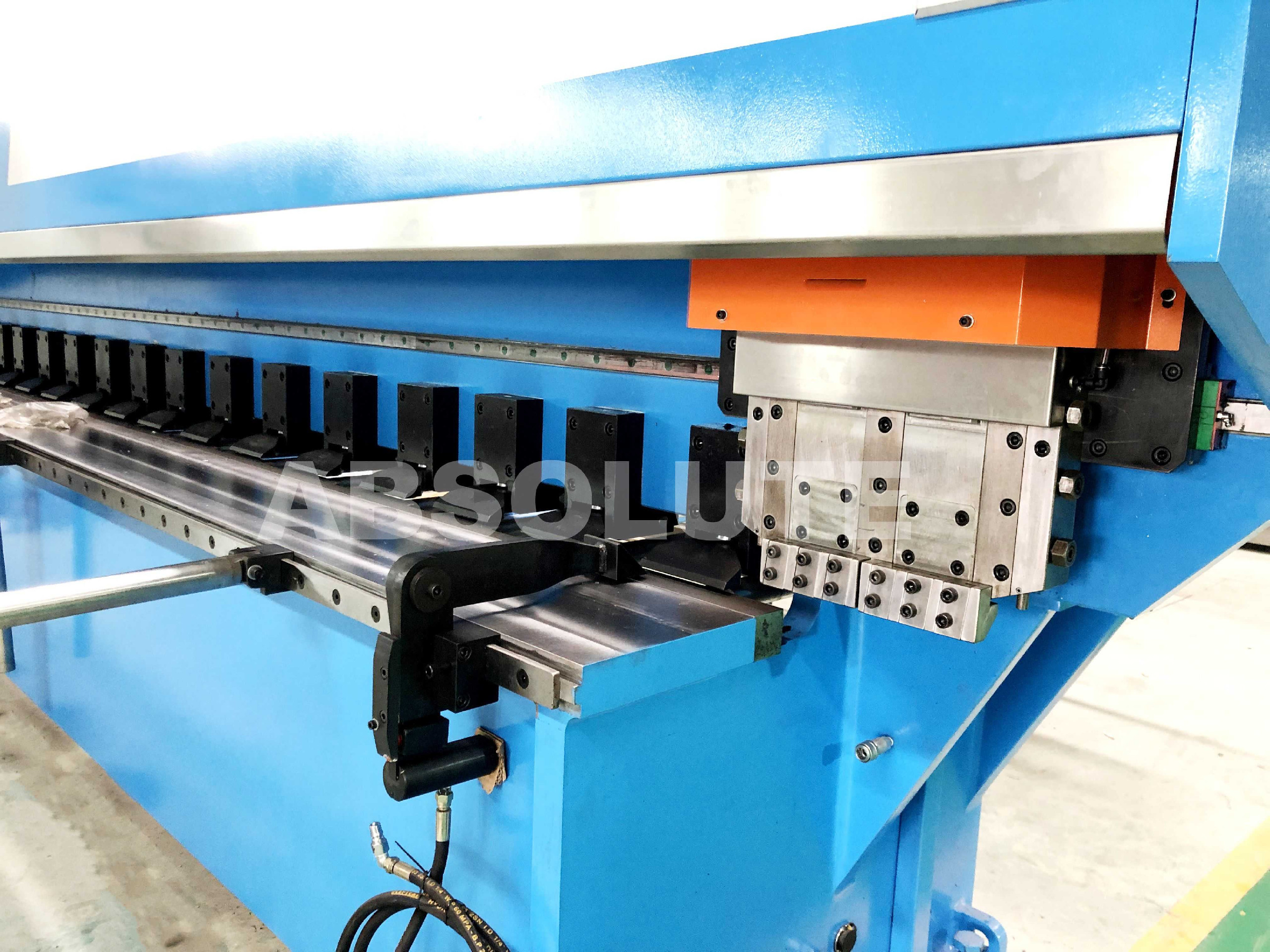

Formed alloy knife

The use of formed alloy knives reduces product wear during equipment processing. It is also easy to buy in the market

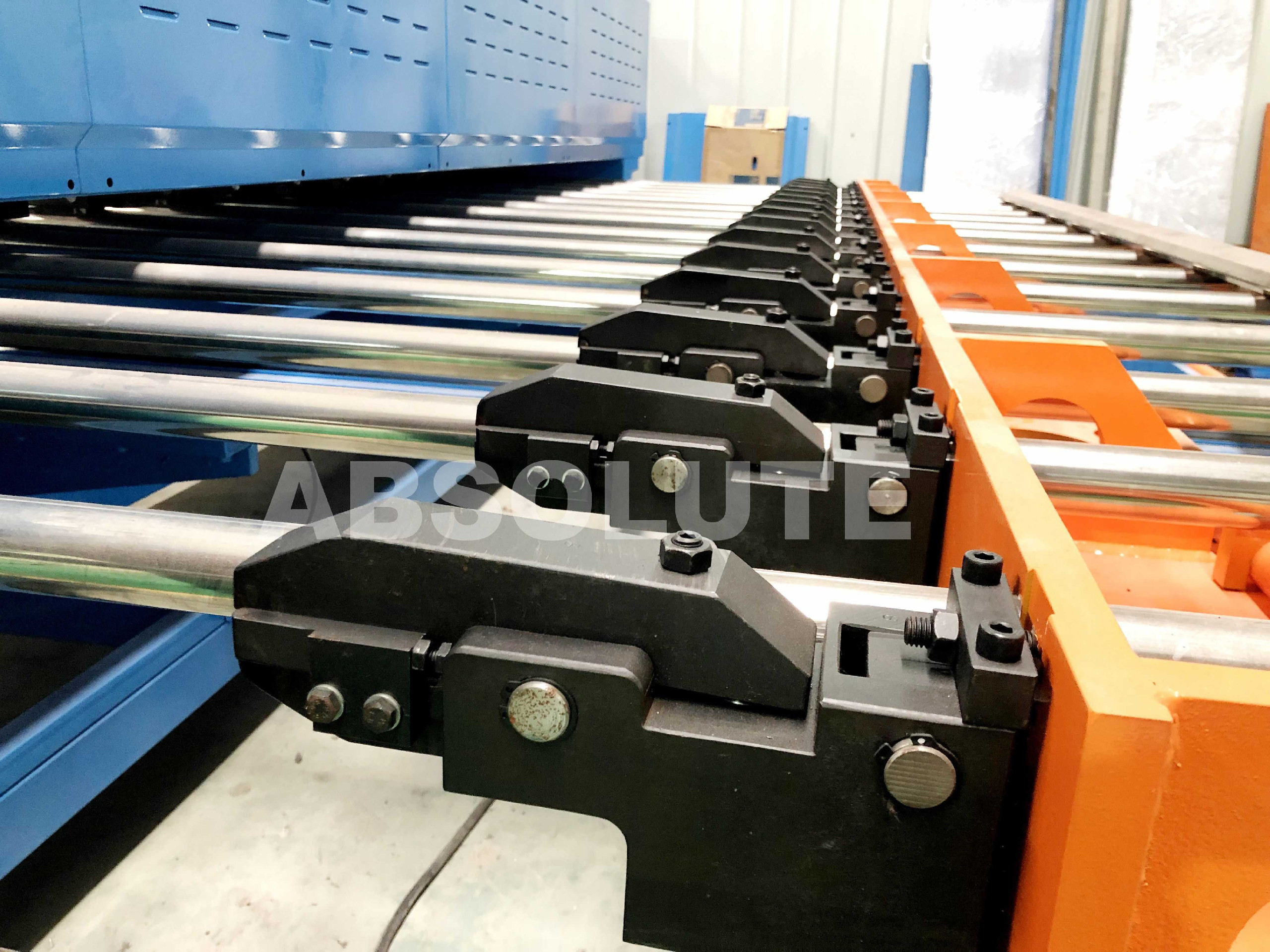

Feeding and pressing device

It adopts hydraulic (pneumatic) configuration to press materials, and the working speed is fast. It also allows the product to be processed without indentation and is also equipped with an alarm device.

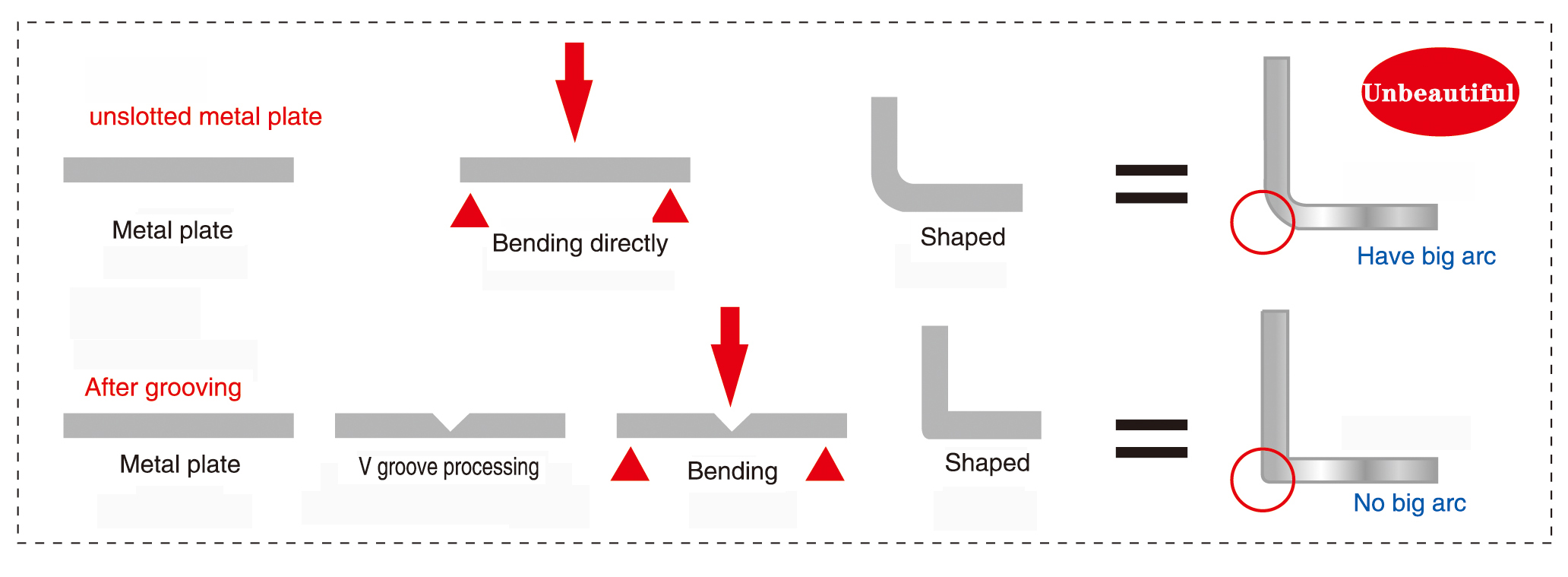

Molding effect

Support non-standard customization, please contact us if necessary.
