Standard Equipment

REQUEST INFORMATION

Control: Foot switch control

Electrics: Germany Schneider Electric

Main Motor:Siemens Motor-Germany

Foot Switch:KACON- South Korea

Automatic feeding can be realized

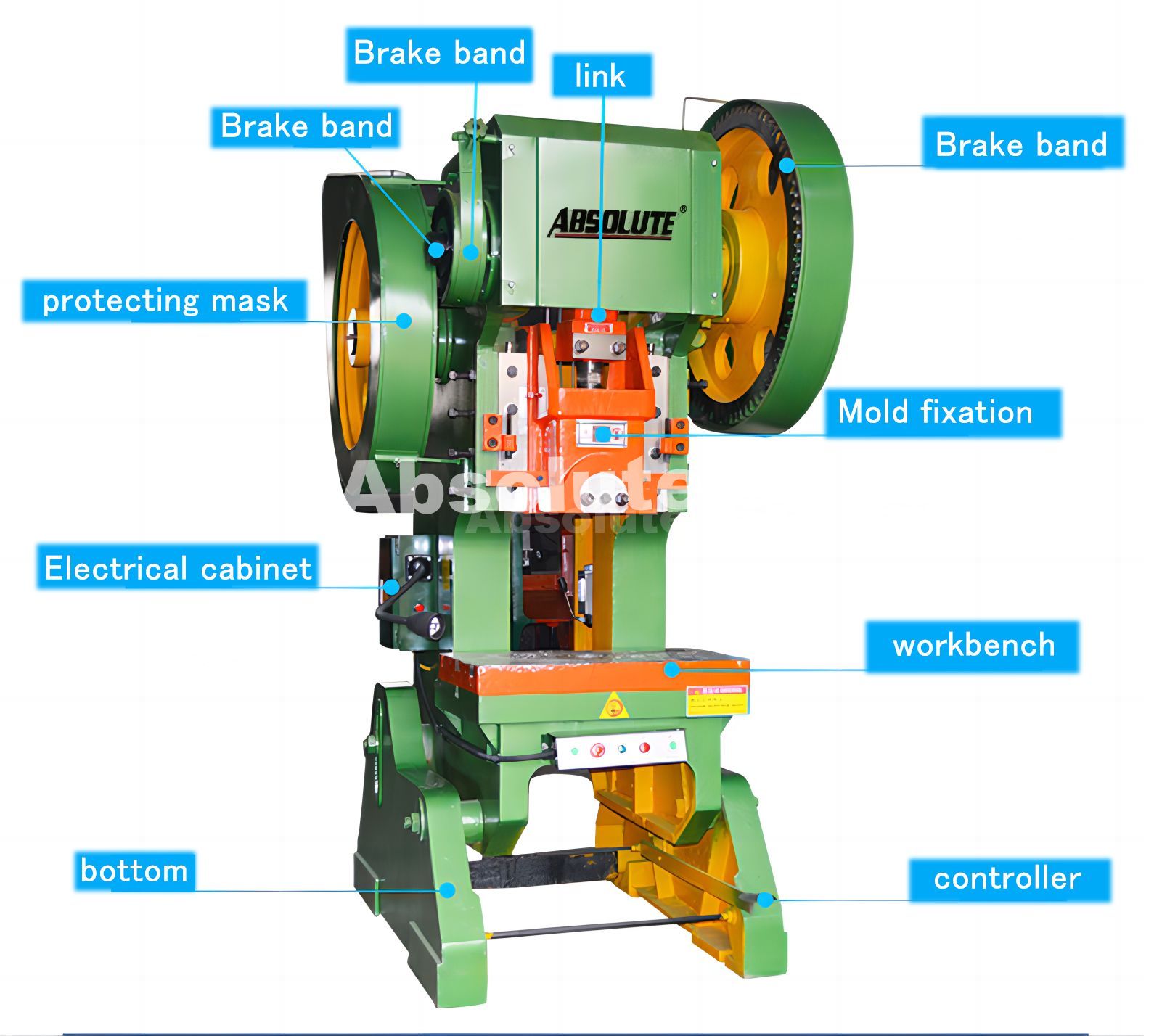

The body of the J23 inclinable punching machine can be tilted at an angle to facilitate the sliding down of the finished press or scrap from the die, and single or continuous strokes can be obtained by means of an electrically controlled press operating mechanism. When equipped with an automatic feed mechanism, semi-automatic continuous stamping is possible. The machine is novel in design, compact in structure, good in steel, easy to use, safe and reliable in operation and suitable for all kinds of cold pressing processes.

Specification


Description		Type	J23-10T	J23-16T	J23-25T	J23-40T	J23-63T	J23-80T	J21-100T	J21-125T	J21-160T
Nominal Force		kn	100	160	250	400	630	800	1000	1250	1600
Slide Stroke		mm	50	60	70	100	100	115	130	130	130
Number of Stroke		Times/min	140	100	70	50	50	45	40	40	35
Closed Height		mm	200	250	290	350	380	410	420	420	410
Close Height Adjustment		mm	40	40	40	60	60	60	60	60	80
Throat Depth		mm	130	180	200	250	280	280	320	320	360
Column Distance		mm	170	200	230	320	350	360	400	430	330
Table Size	Front and Back	mm	230	280	330	420	450	500	600	650	650
Table Size	Left and Right	mm	370	450	530	640	700	750	900	1000	1100
Slide Bottom Size	Front and Back	mm	100	130	170	190	220	250	280	350	340
Slide Bottom Size	Left and Right	mm	145	180	200	250	310	300	325	380	420
Shouk Dimension	Diameter	mm	30	35	40	50	50	60	60	70	80
Shouk Dimension	Depth	mm	50	60	60	100	100	100	100	100	100
Thickness of Table		mm	30	40	45	70	80	90	100	110	120
Dimension	Front and Back	mm	740	900	1000	1400	1500	1600	1800	1900	1800
	Left and Right	mm	600	780	830	1100	1200	1300	1300	1500	1600
	Height	mm	1500	1720	1950	2300	2400	2600	2650	2800	2900
Motor		kw	1.1	1.5	2.2	4.0	5.5	7.5	7.5	11	15
Weight		kg	350	700	1100	2400	3100	4000	5000	7300	9600

What to include in your inquiry

Stamping operation, material grade and thickness, part drawings and die dimensions.

Required press force, stroke, shut height and working-table dimensions, if known. Ask our team to confirm the press selection for your tooling and process.

Feeding method and expected output. If you need a pneumatic option, specify whether this means an air-operated clutch or direct pneumatic actuation, and provide the available air supply.

Include your destination country, electrical supply and preferred machine options so we can discuss the installation and configuration requirements.
