CNC Press Brake-DA66T

Review the equipment and configuration below. Send your material, thickness, working dimensions and application to request a quotation for this machine.

Request a quotation for this machineDiscuss on WhatsApp
Absolute CNC press brake operating in a factory workshop
Absolute CNC press brake operating in a factory workshop
Full-length Absolute CNC hydraulic press brake with tooling and control panel
Full-length Absolute CNC hydraulic press brake with tooling and control panel
Front view of the Absolute CNC press brake with DA-66T controller
Front view of the Absolute CNC press brake with DA-66T controller
Close-up of press brake punch holders and bending tooling along the machine bed
Close-up of press brake punch holders and bending tooling along the machine bed
Close-up of the press brake ram and segmented upper tooling
Close-up of the press brake ram and segmented upper tooling
Press brake punch clamps with CNC controller in the background
Press brake punch clamps with CNC controller in the background
Delem DA-66T CNC controller mounted on the press brake
Delem DA-66T CNC controller mounted on the press brake
Delem DA-66T touchscreen displaying a bending program
Delem DA-66T touchscreen displaying a bending program
Standard Equipment
REQUEST INFORMATION
  • Standard Equip CNC DA66T with Numberical Control
  • Absolute BGA-2 for X=500mm X,R-Axis Manual
  • Absolute Siemens Motor
  • Tool kit: One set of absolute 42CRMO molds
  • Absolute Hydraulic crowning system as optional
  • The Travel switch controls the up and down movement of the sliderRexroth Valve from Gemany
  • USA Sunny Oil Pump
  • Easy Bending Fast Clamp to change toolings
  • Invertor to positioning backguage one time
  • Full electrical components
  • CE & ISO Certification
    • Technical Parameter

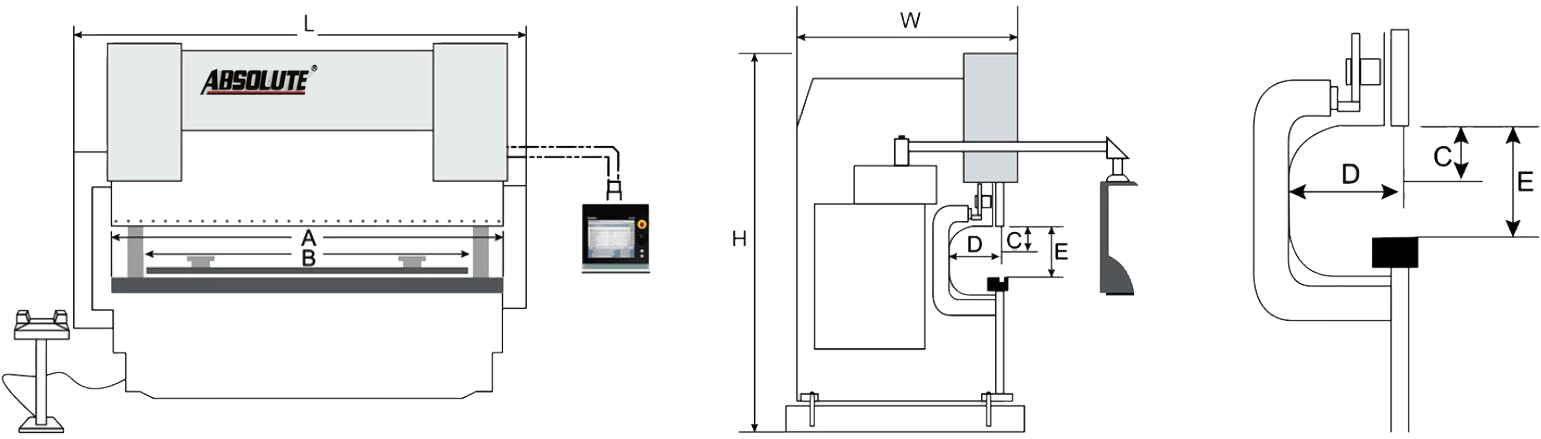

    ModelForceMax. LengthVerticalDepthStrokeMax. OpeningPowerX-travelX-speedL*W*H(mm)Weight


    		ABDCE




    WE67K-
    63T/2500    		630Kn2500mm1960mm400mm150mm480mm5.5KW500mm200mm/s2850*1750*23506Ton
    WE67K-
    80T/3200    		800Kn2500mm2600mm400mm200mm480mm7.5KW500mm200mm/s3850*1850*25507.2Ton
    WE67K-
    110T/3200    		1100Kn3200mm2600mm400mm200mm480mm7.5KW500mm200mm/s3850*1850*26008.0Ton
    WE67K-
    110T/4000    		1100Kn4000mm3200mm400mm200mm480mm7.5KW500mm200mm/s4610*1850*270010.5Ton
    WE67K-
    135T/3200    		1300Kn3200mm2600mm400mm200mm480mm11KW500mm200mm/s3850*1850*26009Ton
    WE67K-
    135T/4000    		1300Kn4000mm3200mm400mm200mm480mm11KW500mm200mm/s4610*1850*270011.5Ton
    WE67K-
    175T/3200    		1700Kn3200mm2600mm400mm200mm480mm11KW500mm200mm/s3900*1900*260010.5Ton
    WE67K-
    175T/4000    		1700Kn4000mm3200mm400mm200mm480mm11KW500mm200mm/s4650*1900*270012.5Ton
    WE67K-
    220T/3200    		2000Kn3200mm2600mm400mm200mm480mm15KW500mm200mm/s3900*1900*270012Ton
    WE67K-
    220T/4000    		2000Kn4000mm3200mm400mm200mm480mm15KW500mm200mm/s4700*1900*270013Ton
    WE67K-
    270T/3200    		2500Kn3200mm2600mm400mm200mm480mm15KW500mm200mm/s3900*2100*280014Ton
    WE67K-
    270T/4000    		2500Kn4000mm3200mm400mm200mm480mm15KW500mm200mm/s4650*2100*285015.5Ton
    WE67K-
    320T/3200    		3200Kn3200mm2600mm400mm200mm480mm22KW500mm200mm/s3930*2110*320019Ton
    WE67K-
    320T/4000    		3200Kn4000mm3200mm400mm200mm480mm22KW500mm200mm/s4830*2110*320022Ton
    WE67K-
    400T/4000    		4000Kn4000mm3200mm400mm320mm600mm30KW500mm200mm/s4850*2450*350028Ton
    WE67K-
    500T/6000    		5000Kn6000mm4900mm500mm320mm600mm37KW800mm200mm/s6500*2810*450042Ton
    WE67K-
    600T/6000    		6000Kn6000mm4900mm500mm320mm600mm45KW800mm200mm/s6500*2910*510050Ton
    WE67K-
    800T/6000    		8000Kn6000mm4720mm700mm400mm600mm55KW800mm200mm/s6500*2950*530075Ton
    CNC axis function
    1.Y(Y1 、Y2)axis:ram synchronous control axis,controlling bending depth and angle.
    2.X(X1 、X2)axis:Controlling back gauge front-back stroke,using controlling bending flange size
    3.R(R1 、R2)axis:Controlling back gauge beam up-down
    4.Z(Z1 、Z2)axis:Controlling back gauge finger left-right movement.

    5.V-axis: There are two options of automatic hydraulic crown (mechanical compensation) of the worktable.

    CNC Control axis
    CNC AxesAxes NameNote
    2+1 axisY1 Y2+CrowningFor pole customized
    press  brake
    3+1 axisY1 Y2 X+CrowningStandard Model
    4+1 axiSY1 Y2 X R+CrownIngPopular Model
    5+1 axisY1 Y2 X R Z+CrowningSpeclal Mode
    6+1 axisY1 Y2 X R Z1 Z2+CrowningHigher Model
    8+1 axisY1 Y2 X1 X2 R1 R2 Z1 Z2+CrowningThe best Mode
    Machine precision
    Controlling axisPosition precision(mm)Repeat position
    precision(mm)    		Display resolution
                (mm)

    Standard stroke range

                  (mm)

    Y(Y₁Y₂)±0.01±0.010.01Please see technica
    data
    X(X1 X2)±0.025±0.010.01800
    R(R₁R₂)±0.03±0.020.01100～150
    Z(Z₁Z₂)±0.1±0.050.011500(3200 length machine）
    2000(4000 length
    machine)

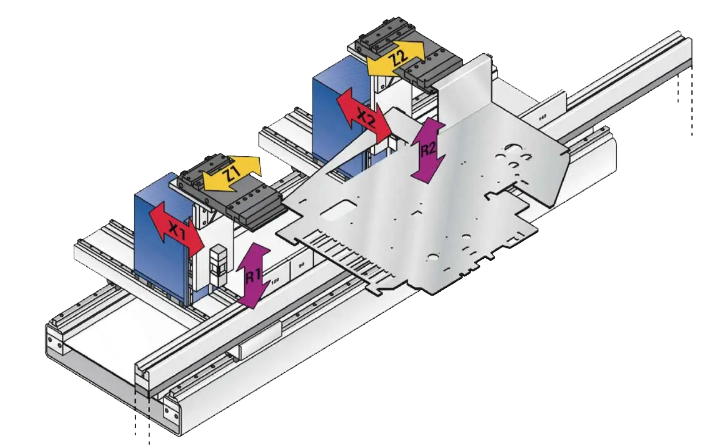

    Press Brake Back-gauge speed111.png



    1.X axis speed:300~500mm/min


    2.R axis speed:300~500mm/min


    3.Z axis speed:300~400mm/min(with servo motor)

                                                  Optional CNC system

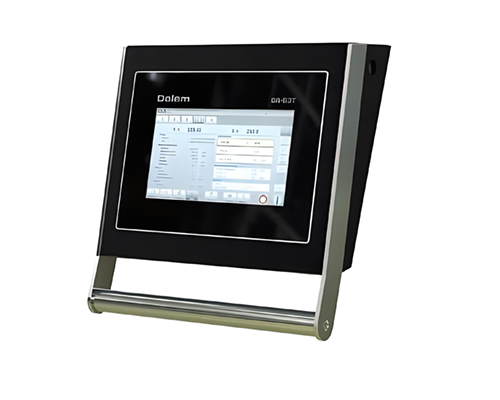

    Delem DA-53T

    ★"Hot-key"touch navigation

    ★10.1"high resolution colour TFT

    ★Upto 4 axes (Y1,Y2+2 aux.axes)

    ★Crowning control

    ★ Tool /material /product library

    ★Servo and frequency inverter control

    ★Advanced Y-axis control algorithms forclosed-loop as well as open-loop valves.

    ★TandemLink (option)

    ★USB memory stick interfacing

    ★Profile-53TL offline software

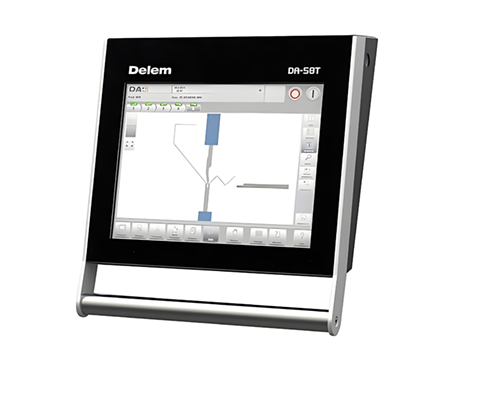

    Delem DA-58T.jpg

    Delem DA-58T

    ★2D graphical touch screen programming

    ★15"high resolution colour TFT

    ★Bend sequence calculation

    ★Crowning control

    ★Servo and frequency inverter control

    ★Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

    ★USB,peripheral interfacing

    ★Profile-T offline software

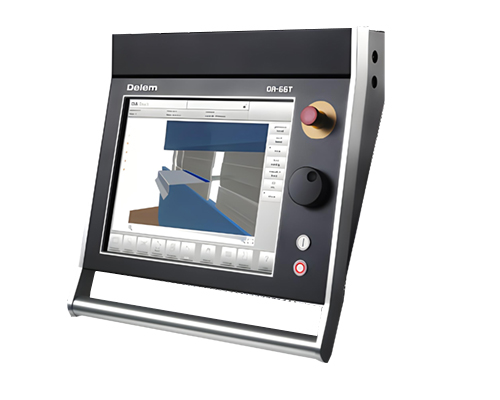

    Delem DA-66T.jpg

    Delem DA-66T

    ★2D graphical touch screen programming mode

    ★3D visualisation in simulation andproduction

    ★17"high resolution colour TFT

    ★Full Windows application suite

    ★Delem Modusys compatibility (module scalabilityand adaptivity)

    ★USB,peripheral interfacing

    ★User specifc application support within thecontrollers multitasking environment

    ★Sensor bending &correction interfaceProfle-TL

    ★offline software
