Big screen

Auto Focus Laser Cutting Head

Super heavy welded bed

World Famous Brand Fiber Lasers Source

Surveillance system

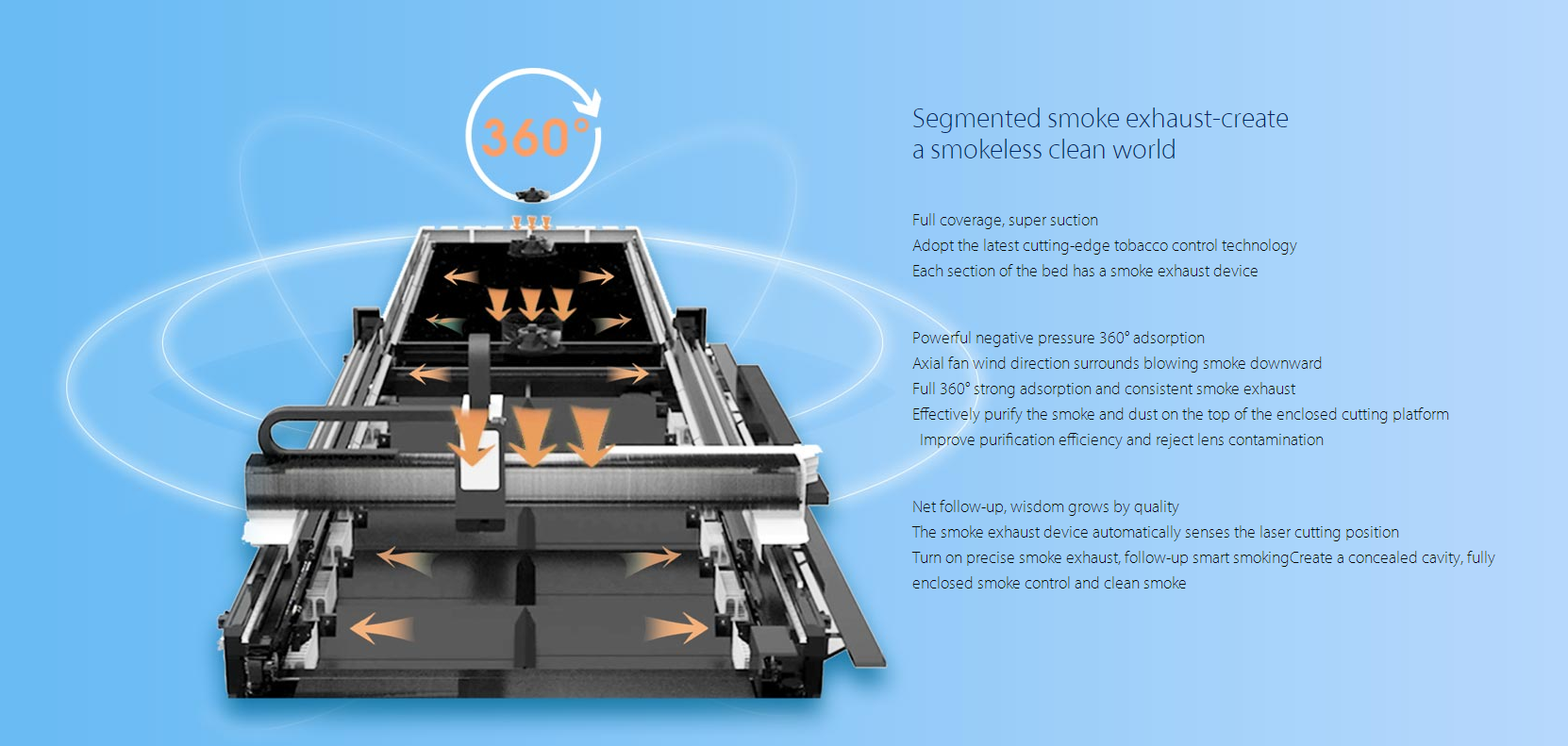

Segmented smoke exhaust-create a smokeless clean world

Auto Focus Laser Cutting Head

Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

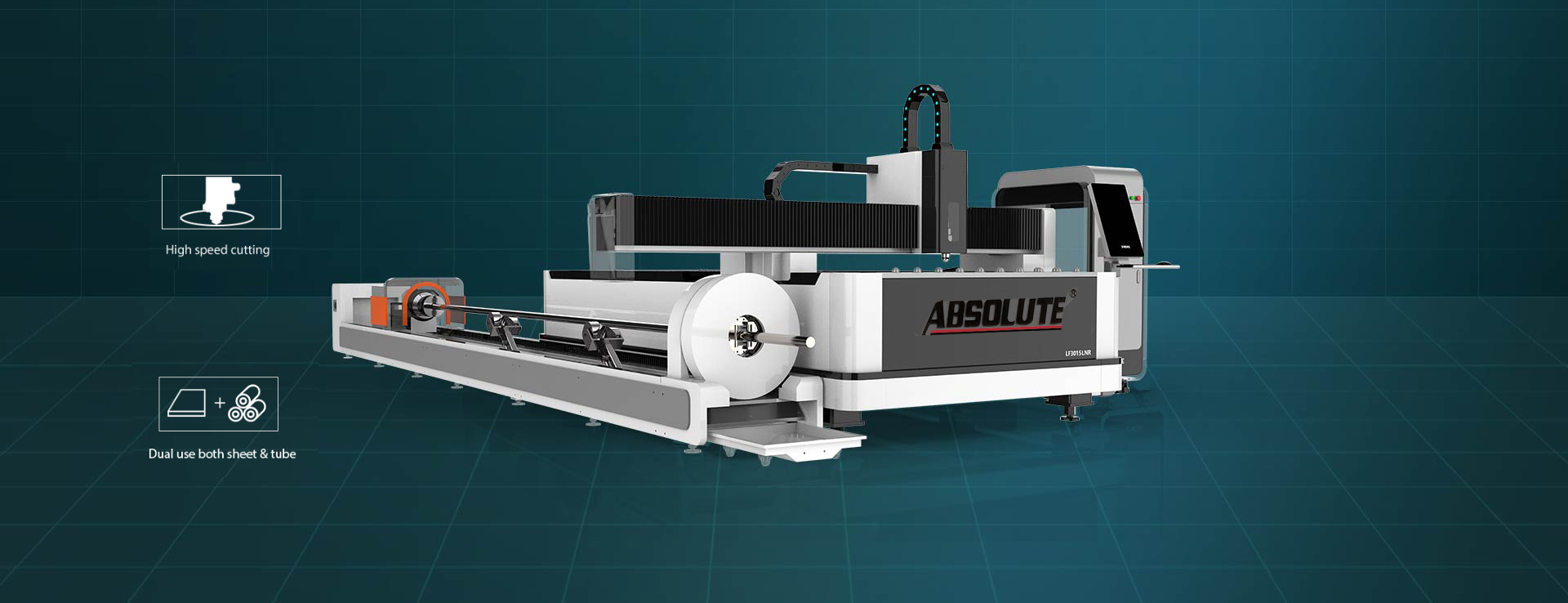

Dual Use and Cost-saving

ABSOLUTE AB series fiber laser cutting machine can not only cut metal plates,but also metal pipes. It has many uses and can save the space of more than 50%,which effectively improve productivity.

Clamp Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm.

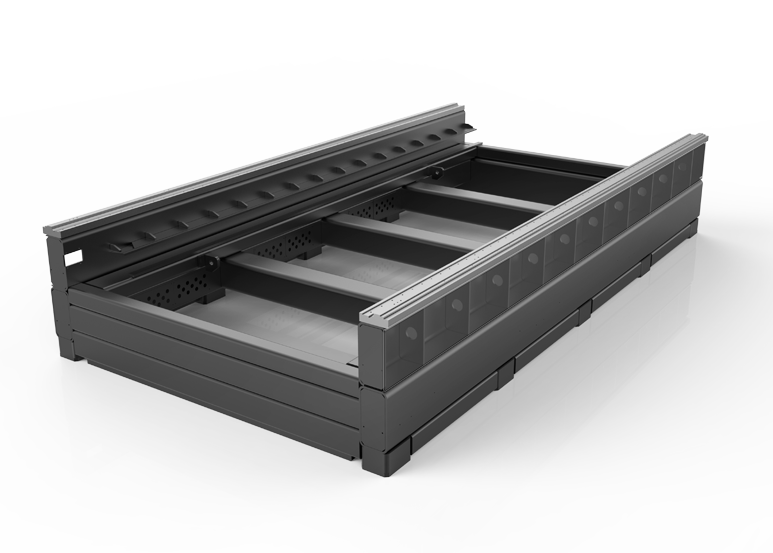

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure,which is welded by a number of rectangular tubes. Stiffeners are arranged insidethe tubes to increase the strength and tensile strength of the bed, it also increasesthe resistance and stability of the guide rail so as to effectively avoid thedeformation of the bed. High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular pipe wall is 10mm.

PAD design display

Apple pad design, vertical screen display, wide viewing angle,low power consumption, high resolution and high contrast.

The use of high-definition tempered glass, intelligent touch control and fast response speed make the screen more delicate and smooth, and the operation is smoother.

Advantage

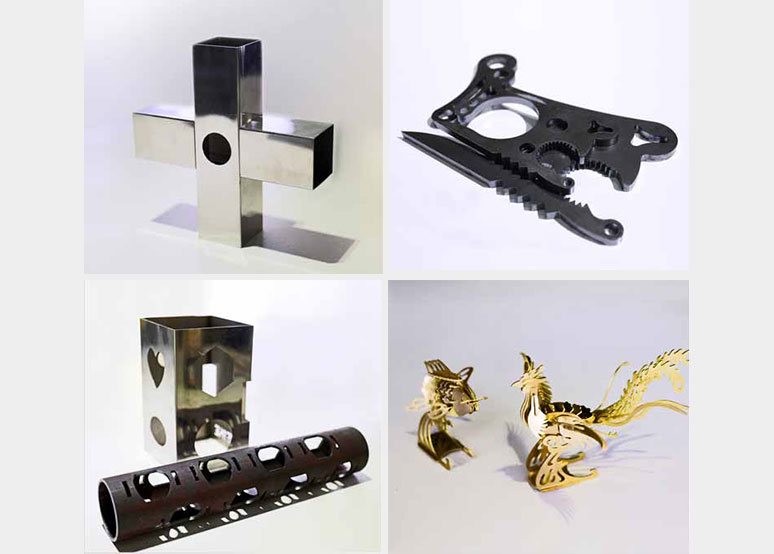

Industry Applications

Since sheet and pipe integrated design, Industry adaptability of LF3015LNR has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive manufacturing, machine cabinet and other board materials mainly mechanical processing, etc. Specially used for cutting 0.5-5mm carbon steel sheets (pipes), 0.5-2.5mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm..

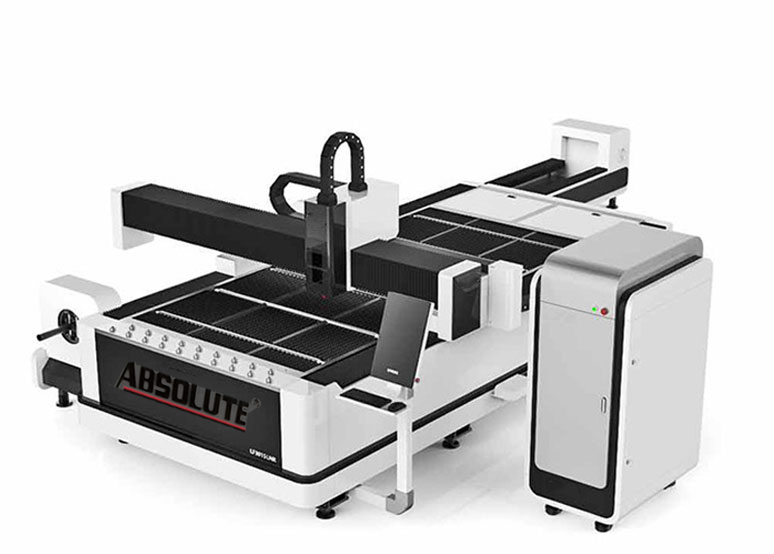

Plate And Tube Fiber Laser Cutting Machine
