Desktop Fiber Laser Metal Cutting Machine

Review the equipment and configuration below. Send your material, thickness, working dimensions and application to request a quotation for this machine.

Request a quotation for this machineDiscuss on WhatsApp
Machine front
Machine front
Machine front
Machine front
Machine side
Machine side
Machine side
Machine side
controller
controller
system
system
mesa
mesa
Workpiece diagram for processing
Workpiece diagram for processing
Standard Equipment
REQUEST INFORMATION
  • Model: SMART PLUS Series
  • Category: Laser Cutting Machine
  • Brand Name: HG Smart Plus
  • Laser power: 1000W-6000W
  • Uses: It can cut stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals and other metals.
    • Features of Fiber Laser Metal Cutting Machine

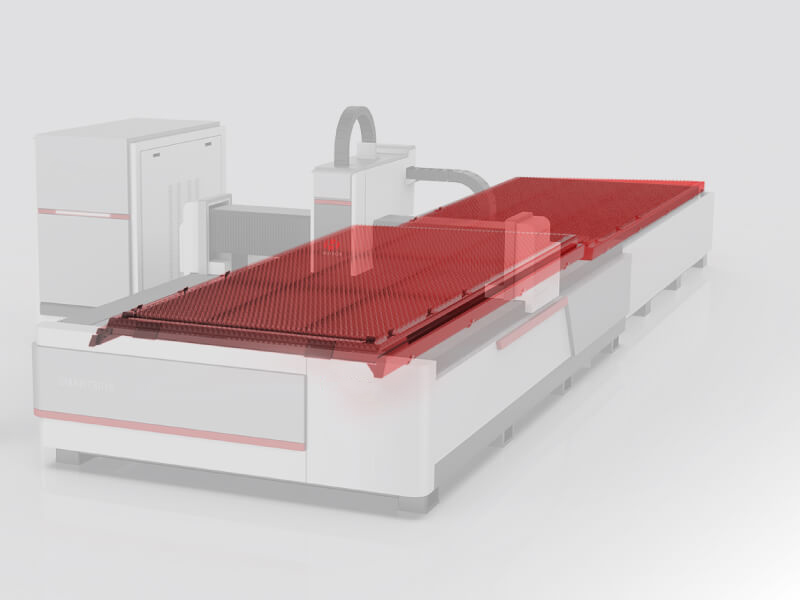

    Special Length of Front Beam
    It makes use of a parallel switching platform as well as a bilateral drive matching sprocket chain. Its characteristics include stability, good rigidity, and high speed.High-speed parallel exchange platform design, simultaneous exchange of two worktables, stable and reliable transmission mode, shorter exchange time, and improved frequency converter.

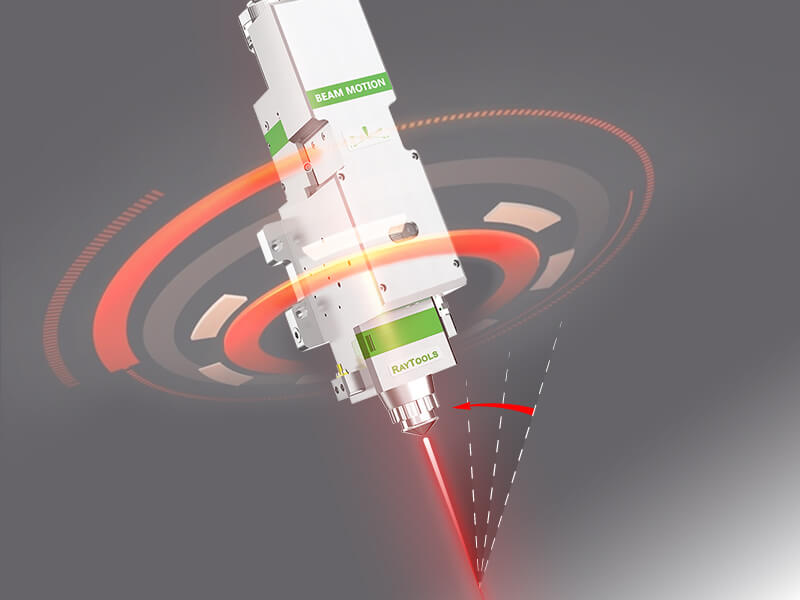

    Without Manual Focusing, Autofocus Laser Cutting Head
    The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.

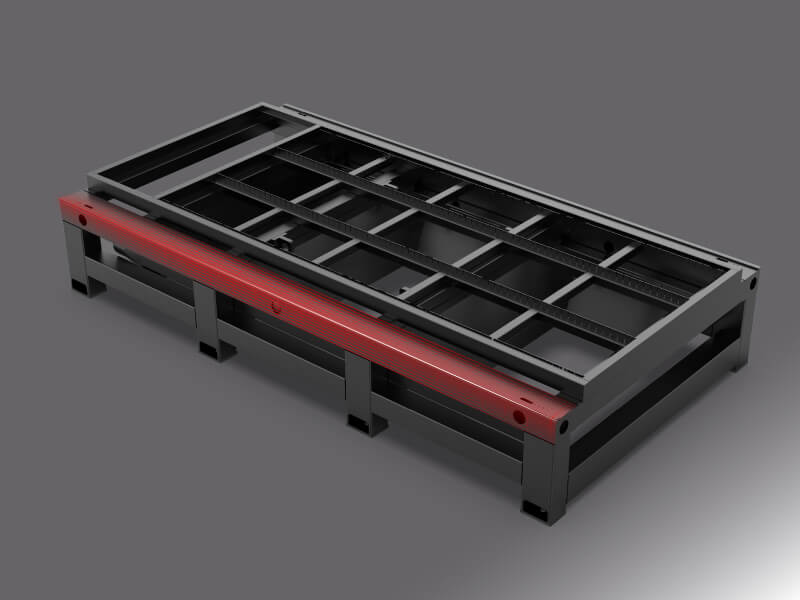

    Laser Cutting Machine Welded Bed
    The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.

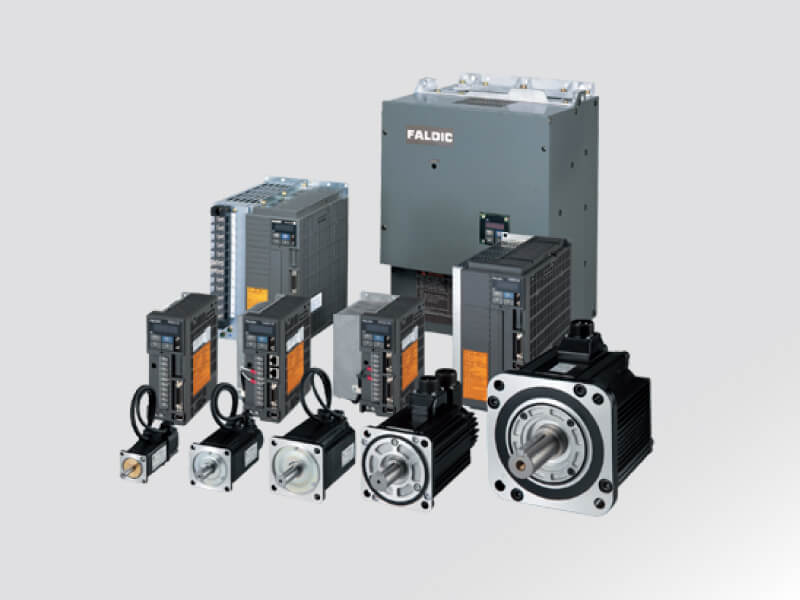

    Servo and Motor
    JAPAN Fuji servo high speed srvo motor
    Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.

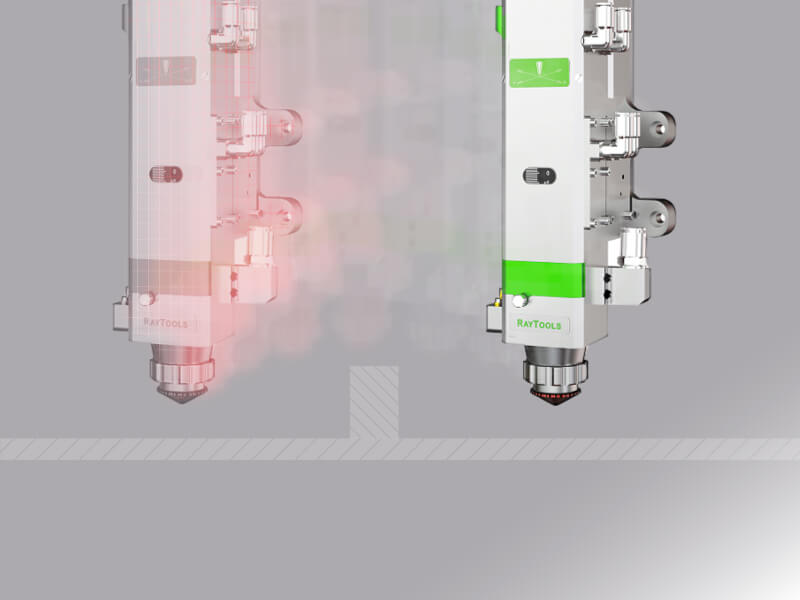

    Active Anti-collision Function
    Effectively reduce the damage rate of laser heads, help you save maintenance cost.

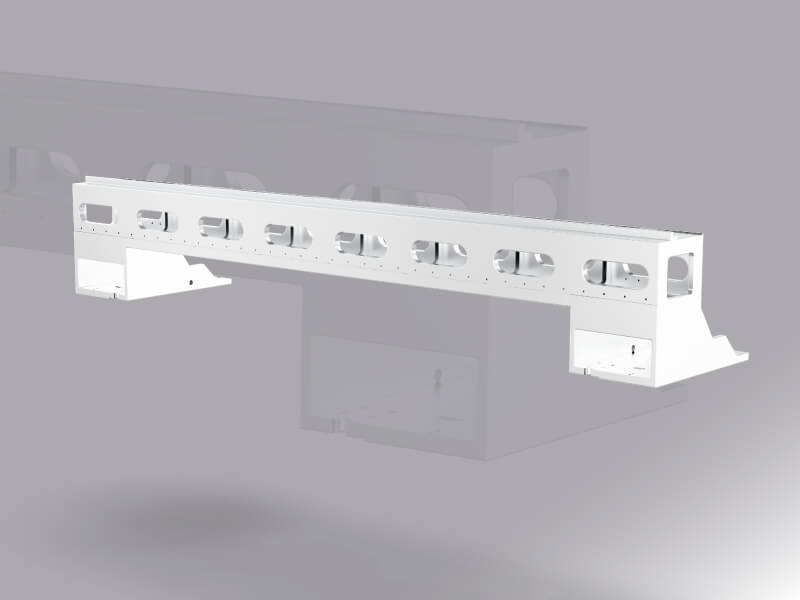

    Beam made of cast aluminum
    Aluminum monolithic cast beam, light weight, high strength, no deformation Light crossbeams, which are molded and framed using integral steel mold and die-casting technology, give equipment a high operation speed, improving processing efficiency and quality.


    Fiber Laser Metal Cutting Machine Parameter
    MACHINE MODELSMART 3015PLUS、4015PLUS、6015PLUS、8015PLUS
    Cutting Area (L×W)3050mm×1530mm – 8130mm×1530mm
    Laser SourceFiber & 1000W – 6000W
    CNC SystemFSCUT 2000
    Laser Cutting HeadBM111 F125mm/BM114 F150mm/BM115 F200mm
    Max Moving Speed100m/min, Acceleration is 1.0G
    Position Accuracy (X and Y axis)±0.02mm
    Reposition Accuracy (X and Y axis)±0.03mm
    Power Supply Requirement380V 50/60Hz 45KVA
    Machine weight≤5600 Kg
    Appearance sizeMajor equipment 8750mm×2510mm×2100mm


             Comparison Chart of Increase in Cutting Speed & Thickness


    Cutting carbon steel with air

    icon-comparisoncontent-2.png Speed increases by 20% for thickness 6mm-12mm.


    Cutting stainless steel with nitrogen

    icon-comparisoncontent-1.png Speed increases by 60% for thickness 12mm-30mm.

    icon-comparisoncontent-2.png Maximum cutting thickness increases by 60%.


    Cutting aluminum with nitrogen

    icon-comparisoncontent-1.png Speed increases by 30% for thickness 8mm-30mm.

    icon-comparisoncontent-2.png Maximum cutting thickness increases by 60%.


    Cutting brass with nitrogen

    icon-comparisoncontent-1.png Speed increases by 80% for thickness above 10mm.

    icon-comparisoncontent-2.png Maximum cutting thickness increases by 100%.
