Manual/ Single/ Cycle function

Easy operation and low maintenance

Strengthen and calibration

The screen supports multiple languages

Features

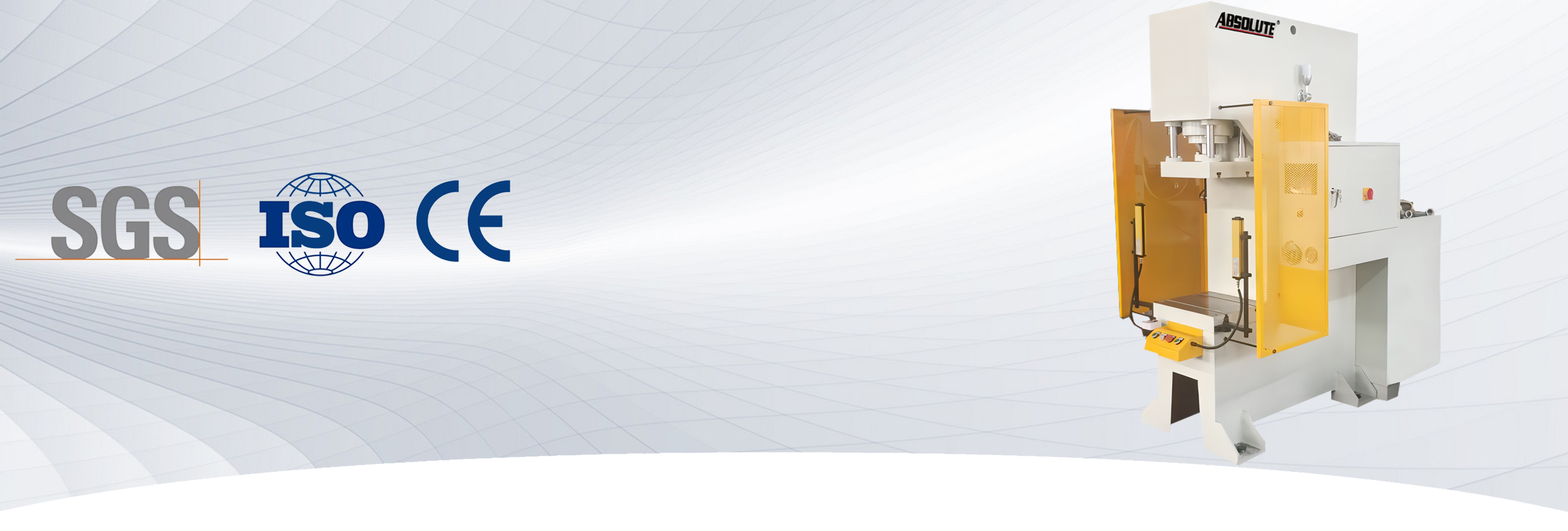

The Y41 single column hydraulic press is a "C" type single column construction with an all steel welded body. The hydraulic system is arranged in the body and the lower part of the working table is equipped with a hydraulic pad, the working pressure stroke can be adjusted within the specified range. The electrical control system is based on a "PC" programmable controller. The machine is controlled centrally by push-buttons and can be operated in an adjustable, manual or semi-automatic manner. This series of hydraulic presses is suitable for drawing, punching, bending, flanging, correction, pressing, hot and cold extrusion of metal materials, and also for pressing and forming of powder products and plastic products.

Specification

Item		Unit	Y41-16T	Y41-25T	Y41-40T	Y41-63T	Y41-100T	Y41-160T	Y41-200T	Y41- 250T	Y41-315T
Nominal force		KN	160	250	400	630	1000	1600	2500	2500	3150
Maximum Pressure		Mpa	13	20	22.5	24.5	25.8	25.5	25	25	26.5
Daylight		mm	500	550	600	630	800	1000	1000	1000	1000
Stroke		mm	350	350	400	500	500	500	500	500	600
Decent Speed		mm/s	125	125	135	135	135	120	120	120	120
Pressing Speed		mm/s	8-15	8-15	8-15	8-15	8-15	8-15	8-15	8-15	8-15
Return Speed		mm/s	110	110	100	100	90	90	90	90	90
Throat Depth		mm	300	300	320	350	350	350	360	360	400
Table Size	F-B	MM	500	500	550	650	650	650	660	700	800
Table Size	L-R	MM	600	600	700	700	800	800	800	800	1000
Worktable Height From Floor		mm	700	700	700	700	700	700	700	700	700
Blanking Hole Diameter(Optional)		mm	70	70	70	80	80	100	120	120	120
Motor Power		Kw	5.5	5.5	5.5	5.5	7.5	15	22	22	22
Dimension	F-B	mm	1140	1280	1370	1520	1570	1680	1780	1850	2060
	L-R	mm	740	755	760	760	840	1000	1200	1300	1630
	Height	mm	1990	2200	2250	2550	2670	2800	3120	3200	3810
Weight		Kg	1200	2000	2500	3000	4000	6800	8000	9600	11000

Single Column Hydraulic Press
